Automatic Modular ABC / BC /Clean Agent

Our Products


image not found

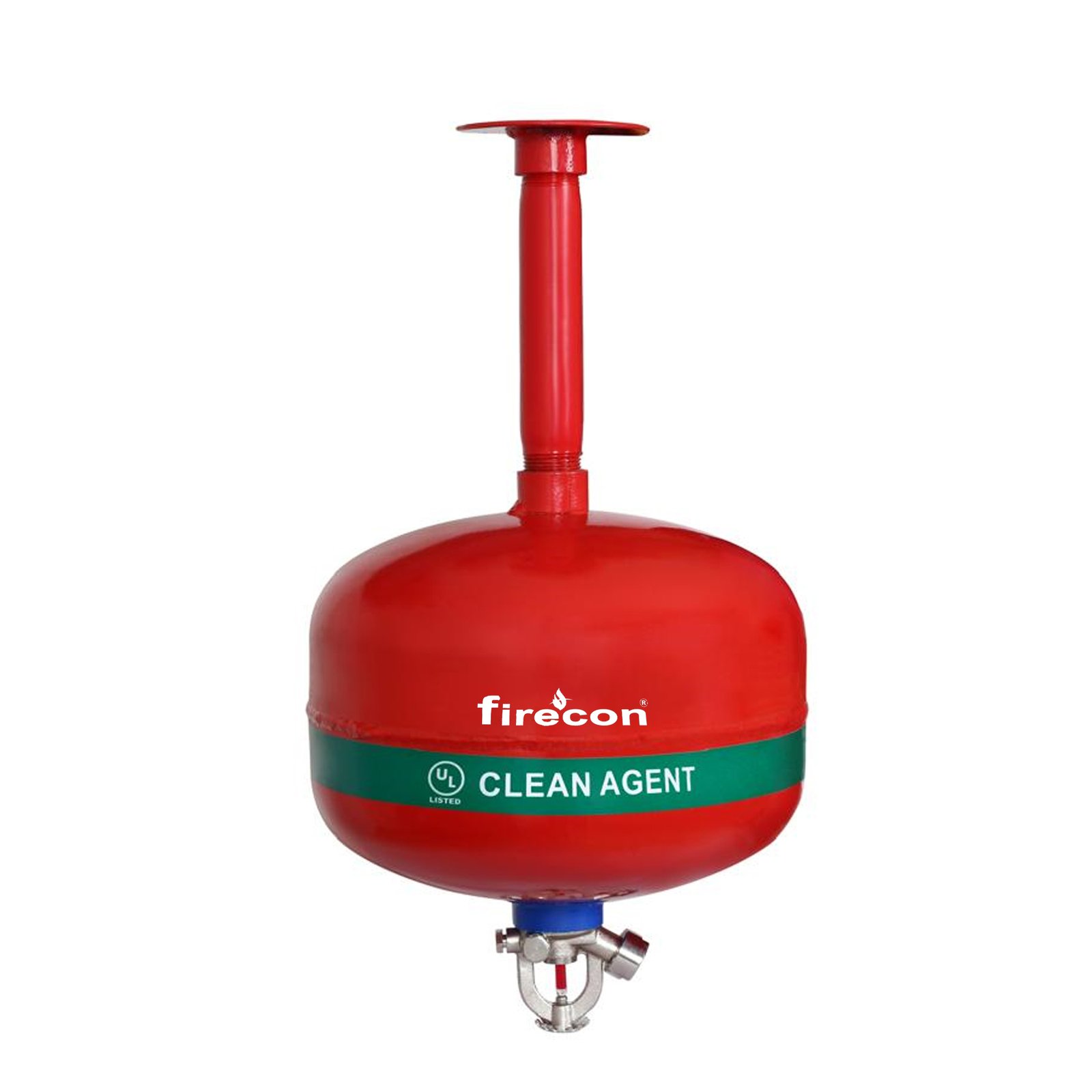

AUTOMATIC CLEAN AGENT FIRE EXTINGUSISHERS

FIRECON by Aman Fireotech Clean Agent Ceiling Mounted type fire extinguishers are preferred where automatic fire detection and activation are required. These extinguishers contain environment friendly UL approved FK-5-1-12 clean agent gas as an extinguishing agent which is a fire suppressant stored as liquid that discharges in the form of gas. Areas where human traffic is less or the storage areas, server rooms, IT rooms, medical labs etc. where early detection of fire is needed, if a fire breaks out in such location automatically operating extinguisher is needed. FIRECON Ceiling Mounted extinguishers with detection and automatic activation are best suited for installation in these locations. In the event of a fire, after desired temperature is reached sprinkler bulb on the ceiling mounted extinguisher fuses and sprays clean agent with maximum force, ensuring that the fire is brought under control rapidly and efficiently. Standard temperature of sprinkler bulb is 68° C, other temperature variants are available as per requirements.
These extinguishers are environmentally safe, leaves no residue and intended for the protection of facilities where electrical panels or electronic equipment’s etc. are installed. Clean agent extinguishers act to extinguish a fire by smothering effect. As the extinguishing agent does not conduct electricity back to the user, they are most effective on electrical fires.
Applications of these extinguishers (PESO) include electrical panel and server rooms, computer Rooms, clean rooms, switch rooms, telecoms room, data storage areas, medical labs and art storage rooms.

Capacity 2 Kg 5 Kg 10 Kg 15 Kg
Design Celling Mounted Celling Mounted Celling Mounted Celling Mounted
Height (Approx) 380 mm 375 mm 405 mm 425 mm
Diameter (Approx) 160+10 mm 230 + 10 mm 300 + 10 mm 400 + 10 mm
Average Discharge Time 4-5 Sec 6-8 Sec 10-15 Sec 15-20 Sec
Hanging Height above Risk 1.5 Mtr 1.5 to 2 Mtr 1.75 to 2.25 Mtr 2 to 3 Mtr
Area Protection 1 to 1.5 m 2 to 2.5 m 4 to 6 m 5 to 6 m
Volume Protection 3 m 7 m 12 m 17 m
Average % Discharge 99% 99% 99% 99%
Operating Temperature 30°C to -60°C
Test Pressure 15 / 35 Bar
image not found

Automatic Modular ABC / BC

The Automatic Modular ABC / BC Fire Suppression System is a state-of-the-art fire extinguishing solution designed for enclosed spaces requiring fast, efficient, and non-destructive fire suppression. Ideal for data centers, electrical rooms, server rooms, archives, and other areas with sensitive equipment.

Agent Type Mono-Ammonium Phosphate based / Sodium Bi-Carbonate or Potassium Bi-Carbonate based
Fire Classes ABC/BC (Class A, B, and C fires)
Activation Type Automatic (thermal bulb)
Cylinder Capacity Available in capacities ranging from 2kg to 15kg
Working Pressure 15 bar
Operating Range -20°C to 60°C
Discharge Time Less than 20 seconds for full discharge (depending upon capacity)
Coverage Area 1 mtr to 6 mtr (depending on room configuration)
Installation Wall-mounted or ceiling-suspended

Technical Properties of Extinguishing Agent

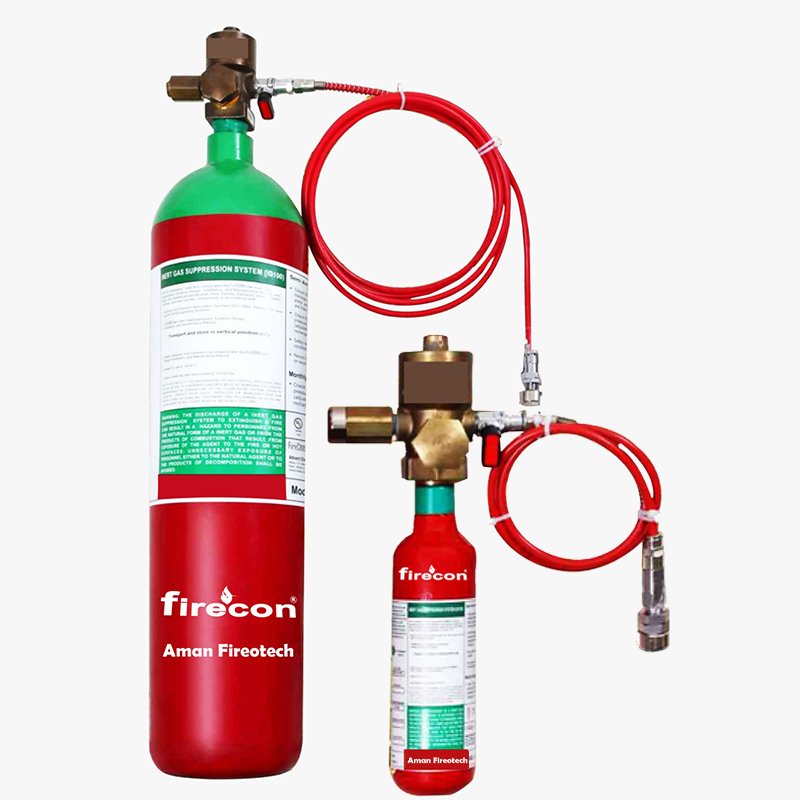

Inert Gas Suppression Systems use argon and nitrogen gases and their mixtures as an extinguishing agent and are based in the principle of reducing the Oxygen concentration inside the protected hazardous area. The Oxygen concentration is minimized by the application of inert gas until it reaches a level where combustion is no longer supported. Each system is designed so as to decrease oxygen to a specific level. When, discharged inert gas is quickly and uniformly distributed within the enclosure, achieving design concentration in 60 seconds.
As inert gases are derived from gases present in the earth's atmosphere, they exhibit no ozone depletion potential and they do not contribute to global warming.
When an inert gas is discharged into an enclosure, it introduces the proper mixture of gas that will allow persons to breathe in a reduced oxygen atmosphere. The advantages of inert gases are:

  • Human safe at concentration levels required to suppress fire

  • Zero ozone depletion (ODP-0)

  • No residue to clean up after discharge

  • Zero global warming potential (GWP-0)

  • Stored as a gas

  • Fogging does not occur when the extinguishing agent is discharged

  • Colorless, odorless

  • No decomposition products

  • Electrically non-conductive

  • Natural gas present in the atmosphere

IG100 (N2) / INERT System uses for a Clean, Safe and 100% ecological extinguishment. This gas is widely used in a variety of extinguishing system due to its excellent pressurization conditions.
